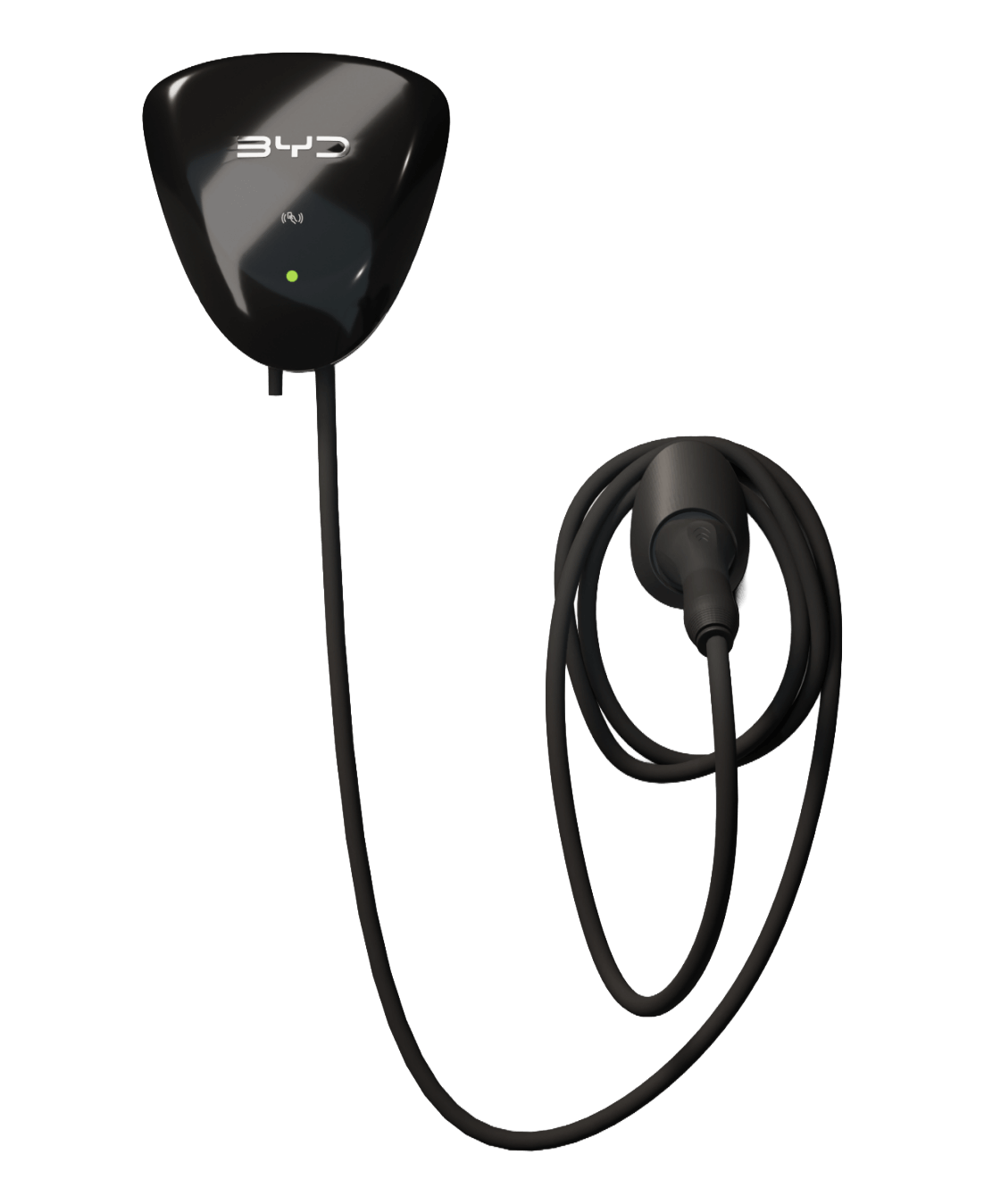

BYD AC Charger

Seamlessly compatible EV charger.

Fast and efficient charging

7.5-metre cable for flexibility

3-year warranty

Designed for BYD

The BYD AC Charger brings fast and efficient charging to you. Engineered for residential and light commercial environments, the BYD AC Charger combines robust safety features with seamless compatibility across the BYD EV lineup.

Available in both 7kW and 11kW variants, the BYD AC Charger offers flexible options to suit different power configurations to suit your home or commercial requirements. Simple, durable, and built for everyday performance, the BYD AC Charger provides a dependable charging experience at home or work.

BYD AC Charger Specifications

Item Parameter
Output power 3.5kW 7kW 11kW
Electric Rated Voltage (AC:V) 230 ±10% 230 ±10% 400 ±10%
Rated Current (A) 16 32 16
Phase Single phase Single phase Three phase
Frequency (Hz) 45 ' 65
Output Charging Interface IEC 62196 type 2
Physics Dimension (mm) 301*290*117 (length*width*height)
Weight (Kg) 4 4.5 4.5
Cable Length (m) 7.5
Secure Enclosure Rating IP54 IP54 IP54
Other Cooling Mode Natural Cooling
Operating Temperature (°C) -25 ' +50
Storage / Transport Temperature (°C) -40 ' +85
Ambient Humidity 5 ' 95% no condensation
Starting Mode Swipe card authentication charging/plug & charge
Standards Compliance IEC61851-1:2017, IEC62196-1:2022, IEC62196-1:2022
Certification CE, CB, RCM

Frequently-Asked Questions

All you need to know about the BYD AC Charger

The BYD AC Charger is a wall-mounted AC charging solution designed for residential and light commercial use. It is engineered to provide safe, reliable, and efficient charging for BYD electric vehicles and other compatible EVs.

The charger is available in two variants:
  • 7kW (single-phase)
  • 11kW (three-phase)

The BYD AC Charger is fully compatible with all current BYD electric vehicle models.

It also supports other EVs equipped with a Type 2 (IEC 62196-2) charging inlet.

Mode Power Supply Maximum Output Typical Use Case
7kW Single-phase 7kW Standard residential homes or light commercial sites
11kW Three-phase 11kW Homes with three-phase power or light commercial sites
Actual charging speed depends on:
  • Vehicle onboard charger capacity
  • Battery size
  • State of charge
  • Electrical installation capacity

  • BYD AC Charger unit (7kW or 11kW)
  • Integrated Type 2 charging cable (7.5m)
  • Wall mounting bracket and installation hardware
  • User manual
  • RFID cards

The current retail version operates primarily as a plug-and-charge solution.

It does not include:
  • Bluetooth connectivity
  • Mobile app control
  • OCPP network functionality
It supports RFID access control for basic user management.

Yes. Installation must be completed by a licensed electrician in accordance with local electrical regulations.

Installation requirements may vary depending on:
  • Single-phase or three-phase availability
  • Switchboard capacity
  • Local distributor requirements

No, South Australia has additional technical requirements for EV chargers, including compliance with local DNSP (Distributed Network Service Provider) regulations.

For installations in SA:
  • The charger must be installed in accordance with local distributor requirements.
  • Customers should confirm compatibility and installation approval with their electrician and local electricity provider before installation.
BYD is working to ensure compliance alignment with SA requirements. Customers should verify the latest compliance status prior to installation.

The BYD AC Charger includes:
  • Overcurrent protection
  • Overvoltage protection
  • Short-circuit protection
  • Thermal protection
  • IP54-rated enclosure (dust and splash resistant)

Yes. The charger is rated IP54, making it suitable for outdoor installation.

However, it should be installed:
  • Under appropriate shelter where possible
  • Away from direct water pooling or flooding

The BYD AC Charger comes with a 3-year standard warranty, covering manufacturing defects under normal use and proper installation.

Proof of purchase is required for warranty claims.

The charger is available through:
  • BYD dealerships
  • Online configurator when ordering your BYD online
  • Authorised retail partners
Availibility may vary by state.

The BYD AC Charger is designed as a cost-effective, fit-for-purpose charging solution for residential and light commercial applications.

While it does not include advanced smart or network features, it offers:
  • Reliable hardware
  • Competitive pricing
  • Seamless compatibility with BYD vehicles
  • Simple installation and operation
Availibility may vary by state.
